Product Description

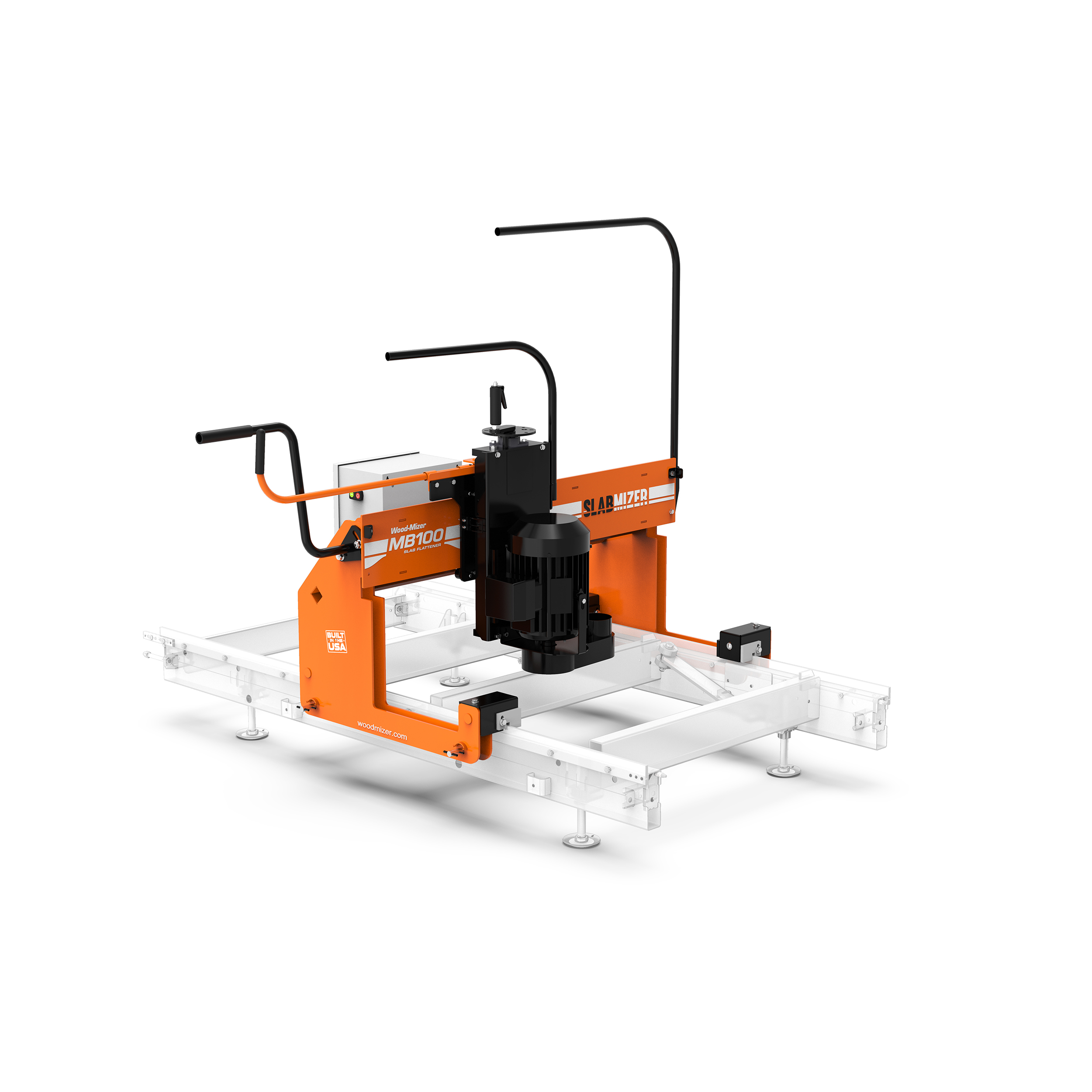

Efficiently surface and flatten high-quality wood slabs up to 36″ wide with the MB100 SlabMizer Slab Flattening Mill! Compared to a traditional router or planer, the MB100 SlabMizer flattens material up to 36″ wide and 8″ thick in less time using a 3HP electric 5″ diameter cutting head equipped with five 4-sided carbide knives. For wider material, Wood-Mizer offers the MB200 SlabMizer Slab Flattening Mill capable of processing material up to 56″ or 72″ wide. Built in the USA, the MB100 SlabMizer requires at least one LT15WIDE bed section (LT15BSW) to operate or can be added to the popular Wood-Mizer LT15WIDE portable sawmill bed to optimize processing space. With one LT15WIDE bed section, slab flattening length is 4′ 7″. For longer capacity, unlimited 6′ 8″ modular bed sections can be added to extend the material length. The MB100 SlabMizer reduces the time needed to flatten wood slabs for woodworking projects. With wide wood slabs being popular items for counter tops, tables, benches, and more, the MB100 SlabMizer is an efficient way to increase the value and possibilities of your rough sawn slabs!
Features: Flatten Material Up To 36″ Wide 5″ Cutting head with Carbide Inserts Quick-Set Adjustment Bar with Presets 2 Metal Adjustable Clamps Compatible with Wood-Mizer LT15 Wide
Specifications: Min. Material Width: 0″ or 3″ if not clamped between larger material Max. Material Width: 36″ Min. Material Thickness: 1/2″ Max. Material Thickness: 8″ Min. Material Length: 22″ Max. Material Length: 9′ 2″ with two LT15BSW bed section/longer with optional 6′ 8″ bed sections Bed Extensions: Optional 6′ 8″ modular extensions Min. Depth of Cut: 1/64″ Max. Depth of Cut: 1/8″ Cutter Head: 5″ with Five 4-Sided Carbide Knives (15mm x 15mm x 2.5mm – R150) Cutter Head Motor: 3HP Electric Cutter Head Speed: 5,500 RPM Machine Length: 31″ for MB100, longer with additional bed sections Machine Width: 68″ including push handle Max. Machine Height: 47″ Dust Collection Port: 3-1/2″ Diameter Power: 3HP 230V 1-Phase, 30A Country of Manufacture: USA
What’s Included: MB100 SlabMizer 2 – LT15 Wide Bed Sections 2 Adjustable Clamps 4 Bed Spacers 5″ Cutting Head with Carbide Inserts
For current pricing, click “Get Details”
