Product Description

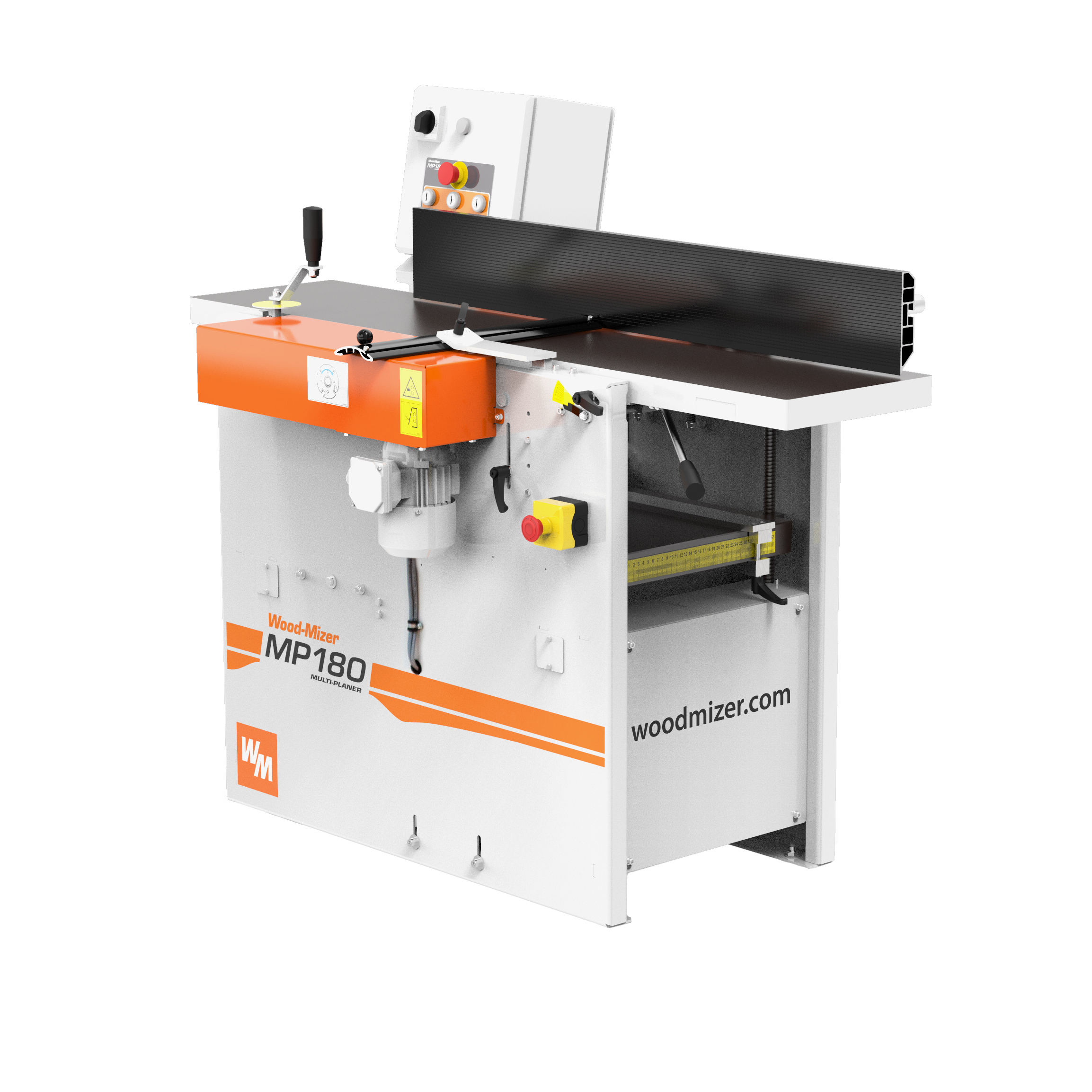

The Wood-Mizer MP180 is a three-in-one Jointer Planer and Moulder able to produce tongue and groove paneling, shiplap, trim, and more. The MP180 efficiently shares one horizontal cutter between two cast iron tables to produce straight-edged boards with the top jointer table and evenly planed boards with the bottom planer table. Switching between jointing and planing is done easily by moving the board from one table to the other without needing to adjust the table or stop the cutter or extractor. In addition, the MP180 features one vertical side cutter that can be fitted with planning or moulding profile knives. The vertical side cutter moulds material on one side with each pass through the bottom planer table. Profiles like tongue and groove can be completed in two passes.
Features: Joint, Planing & Moulding in one unitCast Iron Tables45˚ Adjustable FenceVariable Speed ControlDust Port For Each Cutting headCompact ConstructionNo adjustments need to go from jointing to planing
Specifications: Max Jointer width: 12″ (305m)Jointer table length: 55″ (1,410mm)Max Jointer chip thickness: 5/16″ (8mm)Jointer fence: 6″ x 43″ (152mm x 1,100mm)Max Planer width: 16″ (410mm)Max Planer height: 9-1/2″ (241mm)Planer table length: 32-1/2″ (826mm)Max Planer chip thickness: 1/8″ (4mm)Max Moulder height (standard): 2″ (51mm)Max Moulder height (optional): 4″ (102mm) with side cutter head extension2-Sided Planing/Moulding width: 1″ (25mm) to 12” (305mm)Power – vertical side cutter: 4HP (3kW) motorHorizontal cutter profile depth: 1/16″ (2mm)Horizontal cutter diameter: 2-7/8” (73mm)Horizontal cutter spindle speed: 5600 rpmPower – horizontal cutter: 4HP (3kW) motorPlaner knives: 2 horizontal and 2 vertical HSS planer knives includedFeed roller diameter: 1-1/4″ (32mm)Power – variable feed motor: 3/4HP (0.55kW)Planetary gear for variable feed: 6 – 39 fpm (2 – 12 mpm)Connection requirements: 1-phase, 240V, 60Hz, 38AShipping weight: 1075 lbs (420kg)Shipping length x width x height: 63″ x 42″ x 54″ (1600mm x 1054mm x 1370mm)Delivery: PalletWarranty: 2-YearIncluded with Product:Straight knives for each cutting headJoint/Planer fencing and safety guards Parts kit and manual
