Product Description

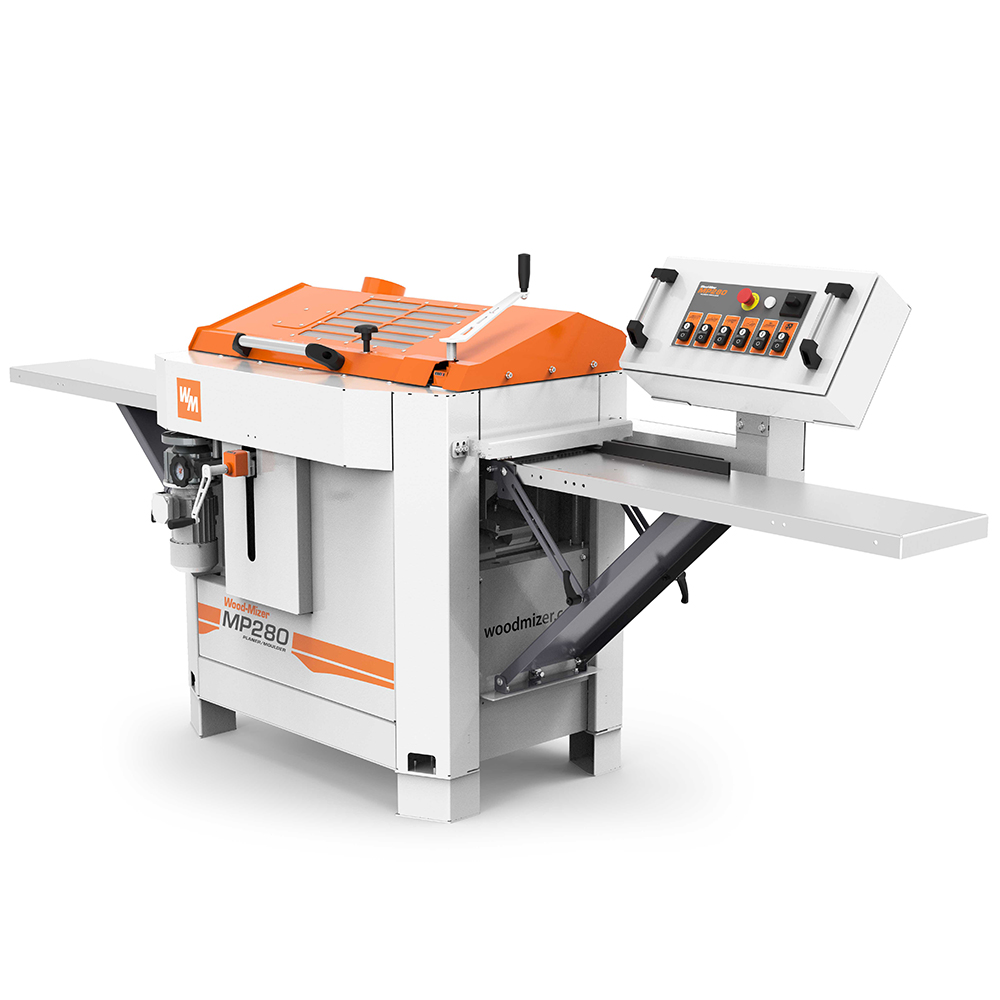

Plane and mould material on one, two, three, or four sides at once with the MP280 4-Sided Planer Moulder! The four sided MP280 planer/moulder is a versatile and compact machine for professional woodworkers that planes and moulds on all four sides at one time. This all-in-one machine is a perfect solution that is easy to use and produces premium wood products, such as flooring, siding, door and window frames, decorative elements, and more. Compared to the popular MP260 planer/moulder, the MP280 features multiple upgrades for durability and performance including reinforced metal construction, standard infeed and outfeed tables, longer in-feed fence, additional cutter head and dust collector controls, and more! The MP280 makes a perfect choice for entrepreneurs who need a universal, efficient, precise, and affordable woodworking machine.
Features: Plane and mould 4 sides in one passTwo horizontal cutter that can be fitted with planing knives or profile knivesTwo 2″ Vertical cutter that can be fitted with planing knives or profile knivesCast iron tableLarge capacity, Compact FootprintEasy tooling changesVariable Feed ControlLarge Viewing Window
Specifications: 4 Sided Planing/MouldingPlaning Width – 1 1/2″ – 9 3/4″Planing Height – 3/8″ – 2″Minimum Material Length – 19 5/8″2 Sided Planing/Moulding (Top & Bottom Cutter Heads)Planing Width – 3/8″ – 11 13/16″Planing Height – 3/8″ – 9″Minimum Material Length – 19 5/8″1 Sided Planing/Moulding (Top Cutting Head Only) *To achieve 1-Sided maximum planing width, some disassembly is requiredPlaning Width – 3/8″ – 16″Planing Height – 3/8″ – 9″Minimum Material Length – 19 5/8″Horizontal Top CutterDiameter – 3 7/16”Width – 16”Motor Power – 4 HPRotation Speed – 7200 rpmMax Cutting Depth – 3/16”Max Profile Depth – ¾”Horizontal Bottom CutterDiameter – 2 7/8”Width – 11 13/16”Motor Power – 4 HPRotation Speed – 7200 rpmMax Cutting Depth – 1/8”Max Profile Depth – 5/16”Side CuttersSpindle Diameter – 1 3/16”Max Cutting Height – 2”Max Diameter – 5 ½”Motor Power – 4 HPRotation Speed – 7200 rpmMax Planning Depth – 3/16”Max Profile Depth – ¾”Power FeedPower – ¾ HP (6-36 ft/min)ElectricalTotal Power – 16 ¾ HPConnection – 1PH, 230V, 60Hz 66.5 Amps
What’s Included: Planing Knives for top, bottom and side cutting heads4′ Infeed table4′ Outfeed tableFencing and pressure rollersParts kit and manual
