Product Description

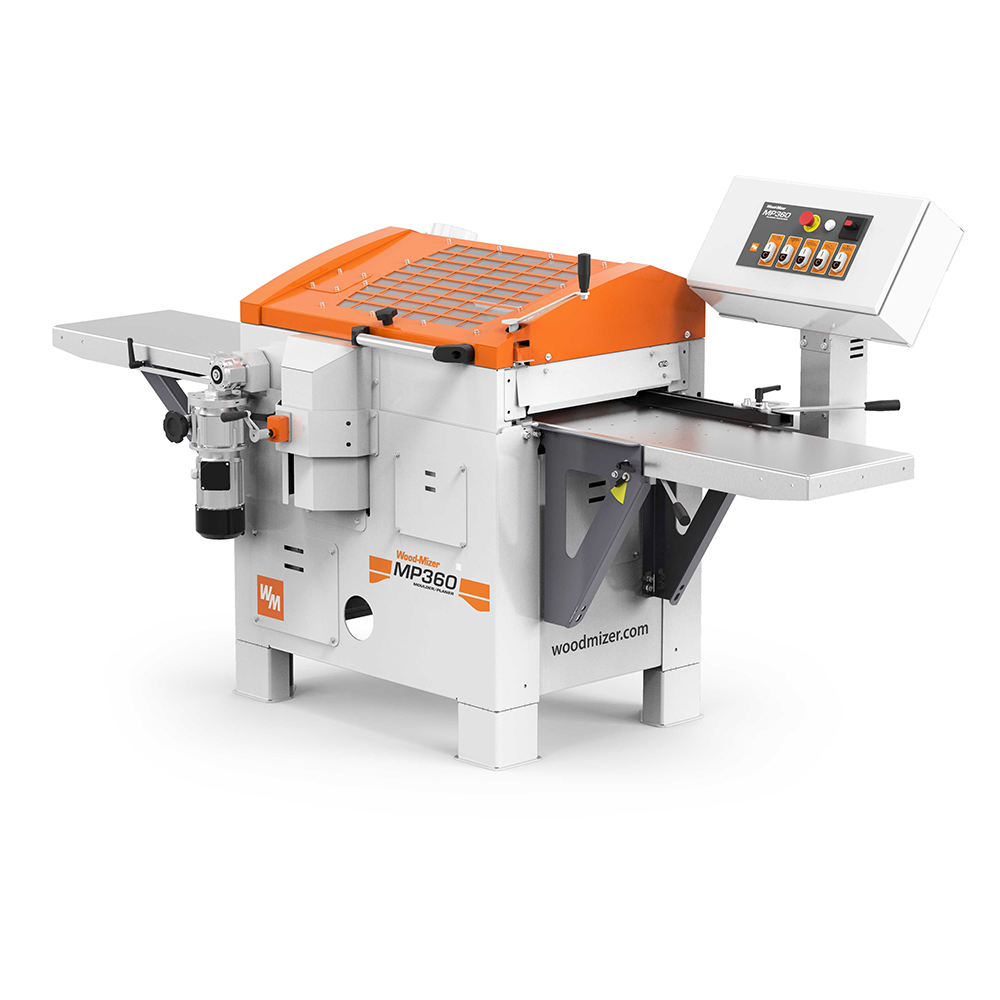

Plane and mould material on one, two, three, or four sides at once with the high-production, large capacity MP360 4-Sided Planer Moulder! Compared to the popular MP260 4-Sided Planer Moulder, the MP360 features a larger processing capacity, higher hourly production levels, faster feed rates, standard infeed and outfeed tables, and more upgrades. The MP360 features two horizontal cutterheads – the 20″ (510 mm) wide top cutterhead and the 16″ (410 mm) wide bottom cutterhead, as well as two side cutterheads, each 2″ (50 mm) high. One of these side cutterheads is mounted on a fixed spindle, while the other one is movable. The MP360 side cutters can be upgraded to 4″ (100 mm), 5″ (130 mm), or 6″ (160 mm) to increase the height capacity for 4-sided processing. The 6″ (160 mm) side cutter requires an additional spindle extension. All four cutters can be fitted with planing knives or moulding profile knives to produce flooring, planed boards, crown moulding, cabinet trim, paneling, door and window frames, furniture components, and more! With the 2 horizontal cutters and 2 side cutters, planing or moulding material on all four sides is completed in one pass. Proven in workshops throughout the world, the MP360 is built to last with heavy duty cast-iron tables, durable sheet steel chassis, premium components, and comes with a complete set of four planing knives. With a 30-day money back guarantee and 2-year warranty, the MP360 Planer Moulder is backed by the same legendary service, quality and safety features shared by the entire family of Wood-Mizer equipment.
Features: Plane and mould 4 sides in one passTwo horizontal cutter that can be fitted with planing knives or profile knivesTwo 2″ Vertical cutter that can be fitted with planing knives or profile knivesCast iron tableLarge capacity, Compact FootprintEasy tooling changesVariable Feed ControlLarge Viewing Window
Specifications: 4 Sided Planing/MouldingPlaning Width – 1 3/8″ – 13 3/4″Planing Height – 3/8″ – 2″Minimum Material Length – 19 5/8″2 Sided Planing/Moulding (Top & Bottom Cutter Heads)Planing Width – 3/8″ – 16″Planing Height – 3/8″ – 9″Minimum Material Length – 19 5/8″1 Sided Planing/Moulding (Top Cutting Head Only) *To achieve 1-Sided maximum planing width some disassembly is requiredPlaning Width – 3/8″ – 20″Planing Height – 3/8″ – 9″Minimum Material Length – 19 5/8″Horizontal Top CutterDiameter – 3 7/16”Width – 20”Motor Power – 7 1/2 HPRotation Speed – 7200 rpmMax Cutting Depth – 3/16”Max Profile Depth – ¾”Horizontal Bottom CutterDiameter – 2 7/8”Width – 16”Motor Power – 5 1/2 HPRotation Speed – 7200 rpmMax Cutting Depth – 3/16”Max Profile Depth – 3/8”Side CuttersSpindle Diameter – 1 3/16”Max Cutting Height – 2”Max Diameter – 5 ½”Motor Power – 4 HPRotation Speed – 7200 rpmMax Planning Depth – 3/16”Max Profile Depth – ¾”Power FeedPower – 1 HP (10-50 ft/min)ElectricalTotal Power – 21 HPConnection – 3PH, 230V, 60Hz 68 Amps
What’s Included: Planing Knives for top, bottom and side cutting heads3′ Infeed table3′ Outfeed tableFencing and pressure rollersParts kit and manual
For current pricing, click “Get Details”
