The Woodpeckers 3D Setup Blocks with Rack-It – 7 Piece Set is a essential addition to any workshop looking for Marking & Measuring solutions.
Under $200 – Great for mid-range hand tools, router bits, safety gear
Product Description

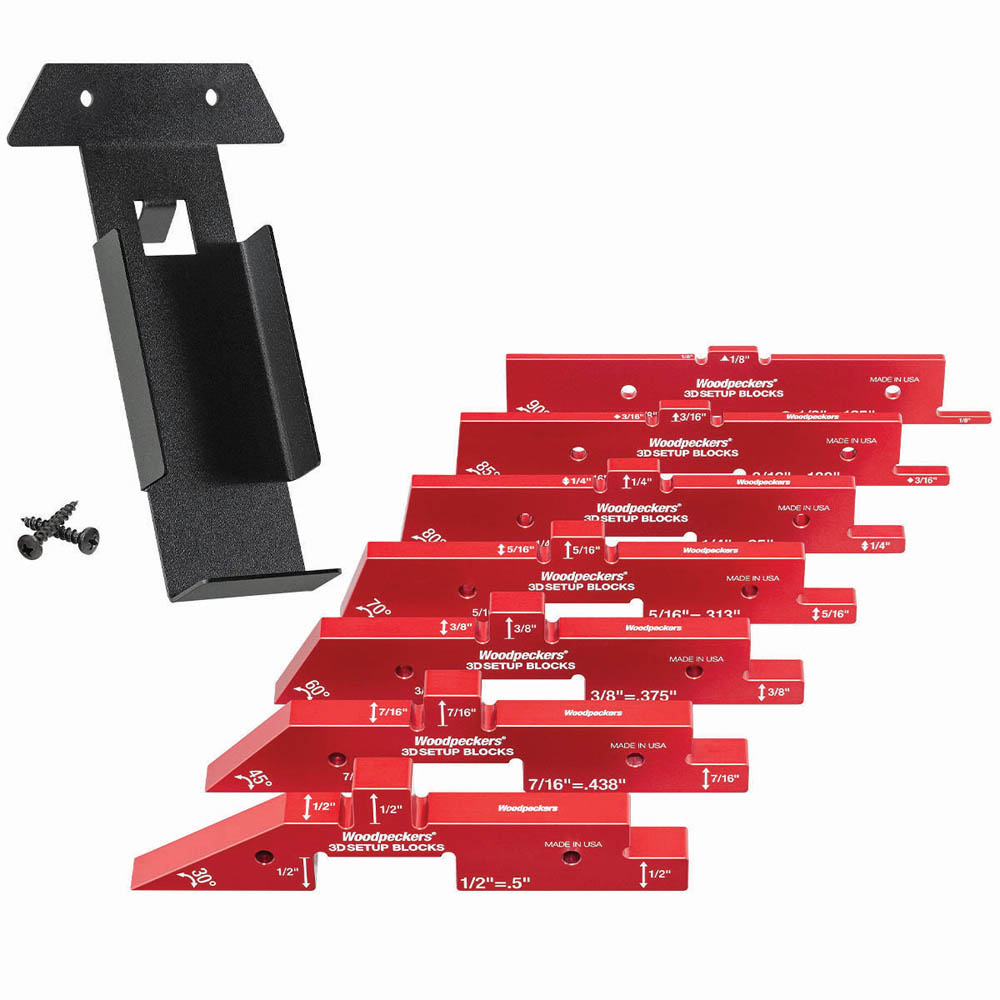

The Woodpeckers 3D Setup Blocks give you a common fractional dimension in four different ways. Each one has a center cut-out section, stepped shoulder and a raised section of the same dimension, giving you four different ways to use the block as an ultimate feeler gauge. They are machined to the labeled thickness with a common bevel angle machined into one end, making table saw adjustments quick and easy. The set includes 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″and 1/2″ blocks along with a wall-mountable Rack-It. Features: Precision machined from anodized aluminum Center cutout for setting bit and blade height Stepped shoulder for fence position and drill press depth setting Thickness for testing grooves and dados Raised section for testing groove and dado depth Bevel angle for setting table saw or miter saw angles Made in Strongsville, Ohio
What’s Included: (1) Woodpeckers 1/8″ x 90deg Setup Block (1) Woodpeckers 3/16″ x 85deg Setup Block (1) Woodpeckers 1/4″ x 80deg Setup Block (1) Woodpeckers 5/16″ x 70deg Setup Block (1) Woodpeckers 3/8″ x 60deg Setup Block (1) Woodpeckers 7/16″ x 45deg Setup Block (1) Woodpeckers 1/2″ x 30deg Setup Block (1) Rack-It
Product Dimensions:
Length: 12.00 IN X Width: 5.00 IN X Height: 4.50 IN Weight: 2.0000 LB
Note: We do not display prices to ensure you always see the most current Woodcraft pricing upon click.
